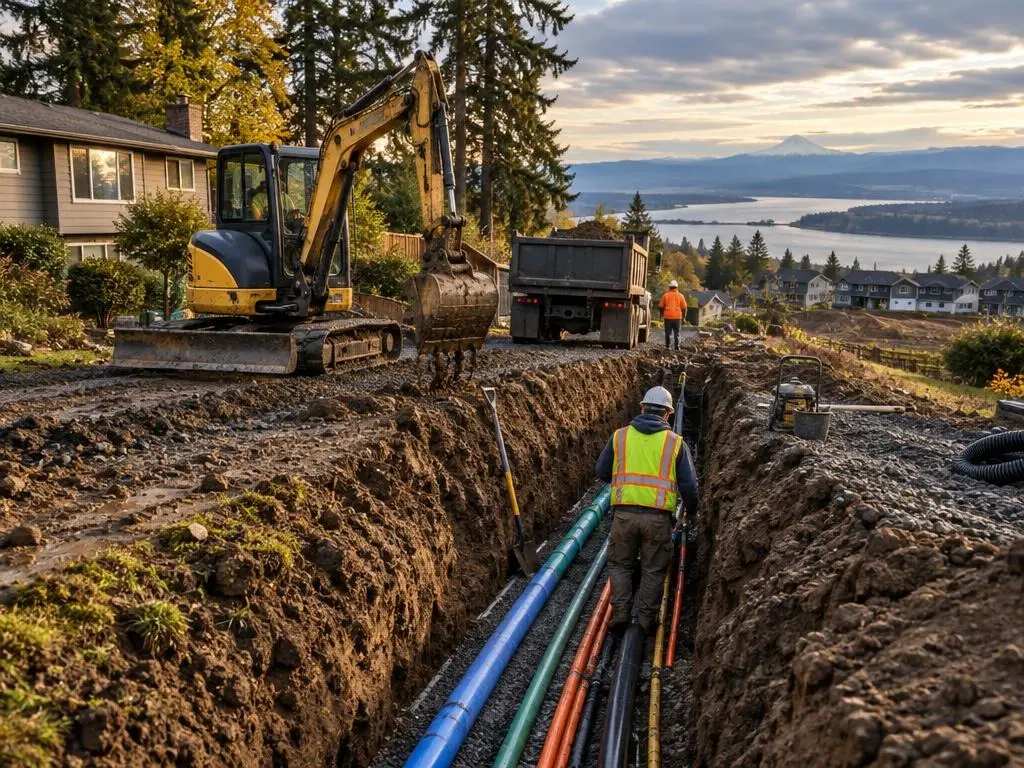

Underground Utility Trenching in Vancouver, WA

Underground utility trenching covers the digging for water services, sewer laterals and side sewers, power and gas to shops and ADUs, conduit for gates and well pumps, fiber and irrigation lines. Underground work is a large share of what local excavators do, and it is often the job that comes with every other project.

Gravel caves, clay smears

In gravelly flood soils, trench walls can cave suddenly, so they are sloped or boxed. In clay, walls stand when dry but slough after rain and turn bedding into mud. We match trench protection and bedding to the soil.

Wells and septic

Rural properties often need a water line from the well, power to the pump, and a building sewer to the septic tank. Setbacks between wells, septic components and water lines apply, and we lay out routes to respect them.

Costs

HomeGuide lists trenching at $5 to $12 per linear foot and sewer, septic or drainage trenches at $500 to $1,200. HomeAdvisor puts water line replacement at $646 to $2,834, with trenched installs at $50 to $250 per foot, and sewer replacement at $1,388 to $5,323.

Bedding and backfill

Pipe and conduit go on a bed of sand or fine rock, not native gravel with sharp stones or clay clods. Backfill goes in lifts and is compacted so the trench does not sink across your lawn or driveway.

Coordination

We work with your plumber, electrician or utility on connections, inspections and depth requirements.

Permits and inspections

Work on water, sewer, power and gas usually needs a permit and inspection. We coordinate trench timing so inspectors see the pipe or conduit before backfill.

Winter repairs

Broken water lines and blocked sewers do not wait for summer. We dig in the rain when needed, pump water from trenches and keep spoil covered so it can be reused as backfill where it is suitable.

Crossing driveways and walks

Where a line must cross concrete, we saw-cut a clean strip, remove it and patch it after backfill, rather than breaking out a whole slab.

Shared trenches

Where codes allow, several utilities can share one trench with proper separation, saving digging and restoration. Your electrician, plumber and utility decide what can go together; we dig to their spacing.

Unknown lines

811 marks public utilities, but private lines such as irrigation, yard lights, old septic lines and well lines are not marked. We ask what you know and hand-dig where something might be.
